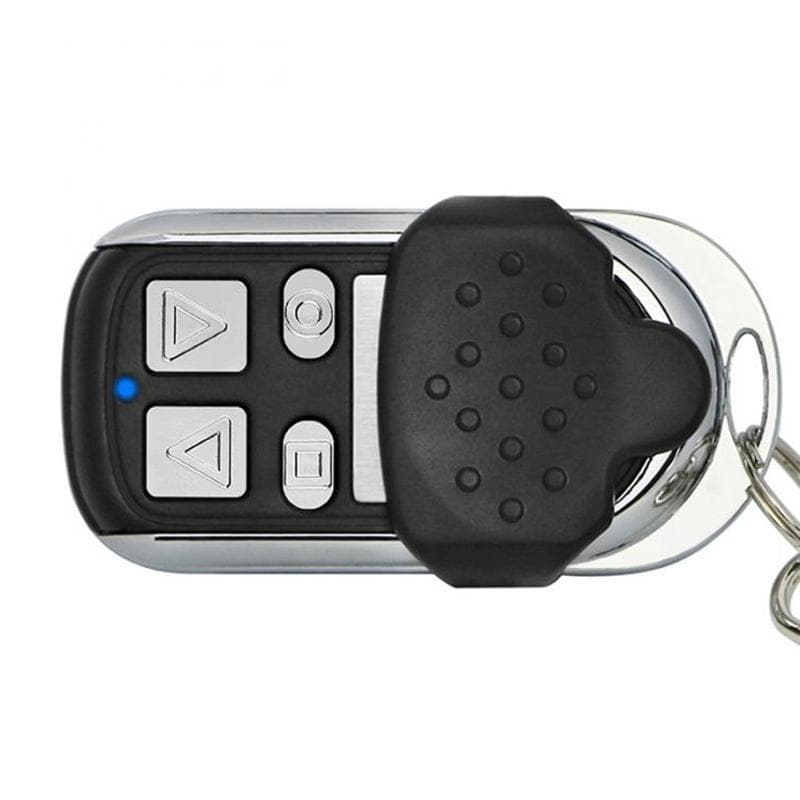

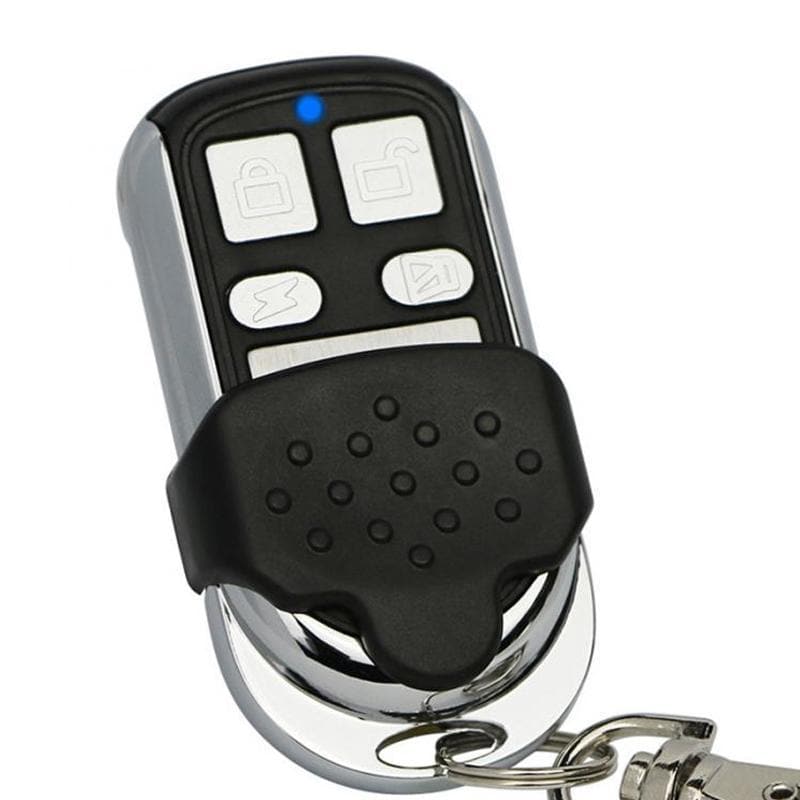

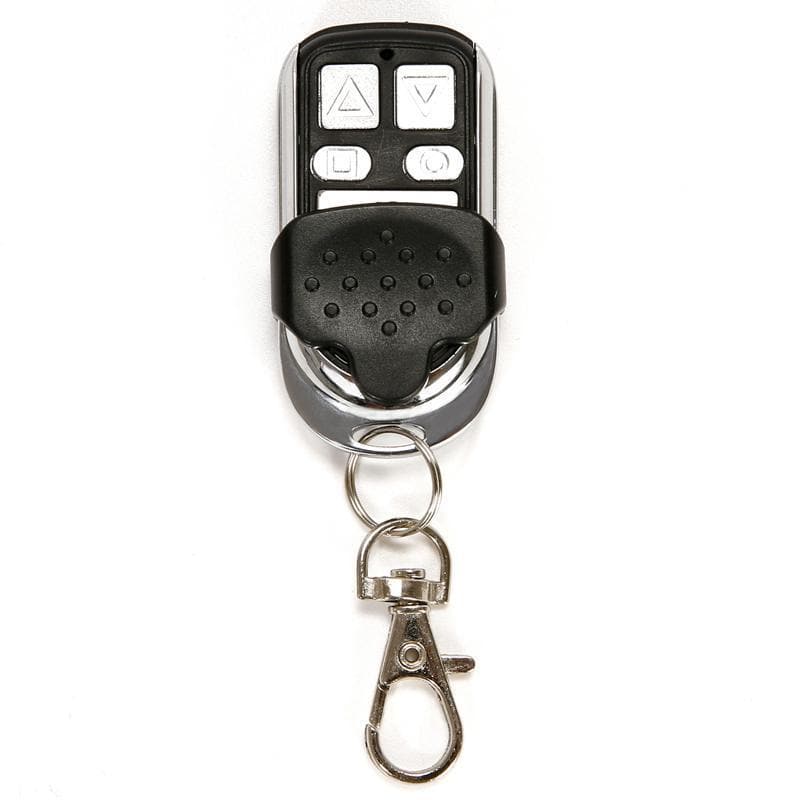

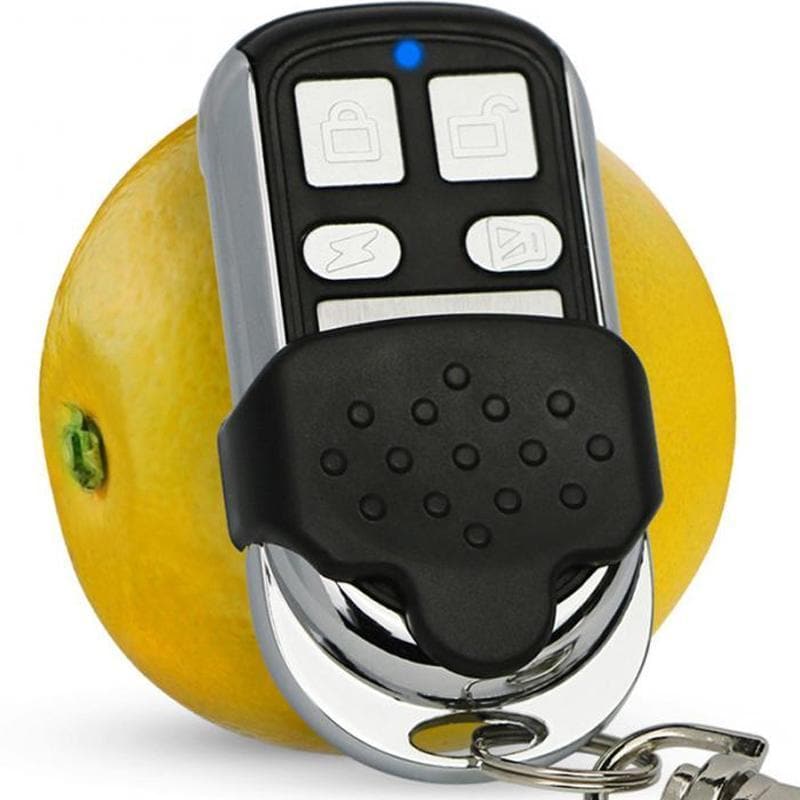

Brehn | Remote control duplicator

BACK UP EVERY KEY IN SECONDS

You can now create a copy of every key in seconds through simple steps and be prepared for possible key breakages, which will definitely fit well into your daily use like a dream.

It is a handy keychain-sized device that attaches to your keyring for portability. You also don't have to worry about privacy and security. It uses one-to-one key copying technology and the password of each key is stored individually.

FEATURES:

• WIRELESS REMOTE CONTROL DUPLICATOR: Duplicate existing remote controls for cars, car roofs, garage doors, entrance gates, heating systems, home automation e.g. lighting, etc.

• ABCD FOUR BUTTONS: copy four different types of chips each and thus operate four different types of systems.

• FIXED FREQUENCY: works for 315 / 433MHz fixed codes and learning codes; transmission distance is 50-100m (open space)

• ONE-TO-ONE KEY COPYING TECHNOLOGY: The password of each key is stored individually and is reliable.

• PORTABLE USER-FRIENDLY DESIGN: Handy keychain format that attaches to your car keys. Sliding cover to protect the buttons from accidental unwanted operation.

To Clear the Code

1. Press buttons A&B simultaneously, after about 2 seconds the LED light will flash 3 times and then go out.

2. Release button B at the same time, keep button A pressed, do not release.

3. Press button B 3 times, then you will see the LED light flash quickly and continuously (button A is still held), indicating that the code has been cleared.

4. Release button A and now you have successfully cleared the code.

To Clone

1. Take the original remote control in one hand and the clone remote control in the other. Hold the two remote controls as close as possible.

2. Press the first buttons of both remote controls simultaneously, and you should see the LED light 2 times flash and then slowly flash 3 times.

3.  You have now successfully cloned the button, now use the same method to copy the remaining buttons.

SPECIFICATIONS:

• Rated Voltage: 12 (V)

• Weight: 0.07lb

• Size: 3.9* 3.9* 1.96Zoll

• Current: 14 (mA)

• Package: 1* a Remote Control Duplicator

• Compatible Chips: 2262, 2260, 5026, 5326, 5326 - 3, 5326 - 4, FP527, PT2240, EV1527, HT6010, HT6014, HT12E, HT640, HT680, PLC168, SMC-Serie, 9XX, PT2292, 12L - 4SC, HT6026, UM3750AM etc.

• Compatible Crystal Frequency: AMERICAN 315 MHZ / OTHER COUNTRIES 433 MHZ
