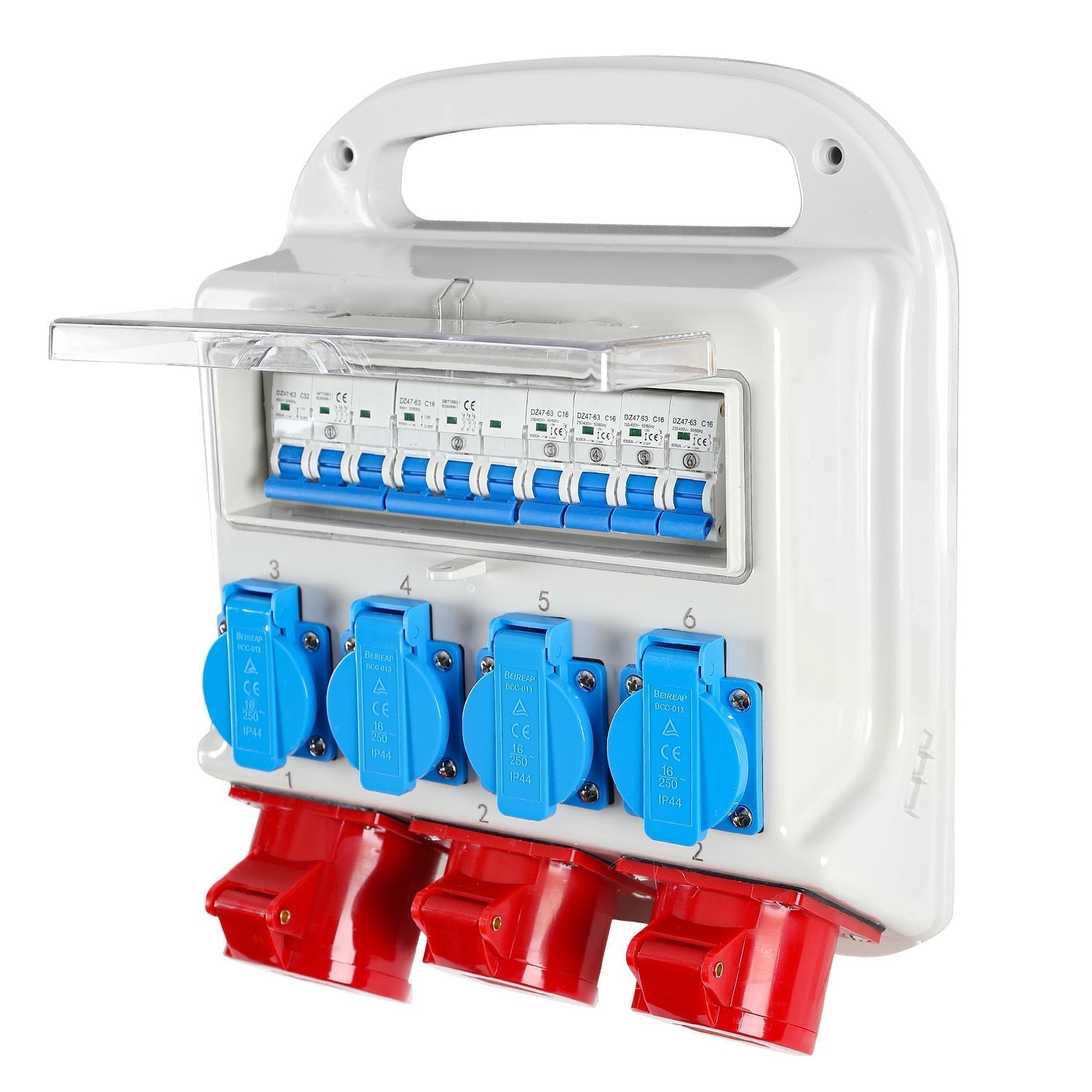

Wall distributor 2 x CEE 16A 400V + 1 x CEE 32A 400V + 4 x 230V 5 Pole | Kalsten

Input and output: CEE coupling 400 V / 32 A 5-pole with 1.2 m cable, 4 x safety socket outlets 230 V / 16 A, 2 x CEE 400 V / 16 A 5-pole, 1 x CEE 400 V / 32 A 5-pole.

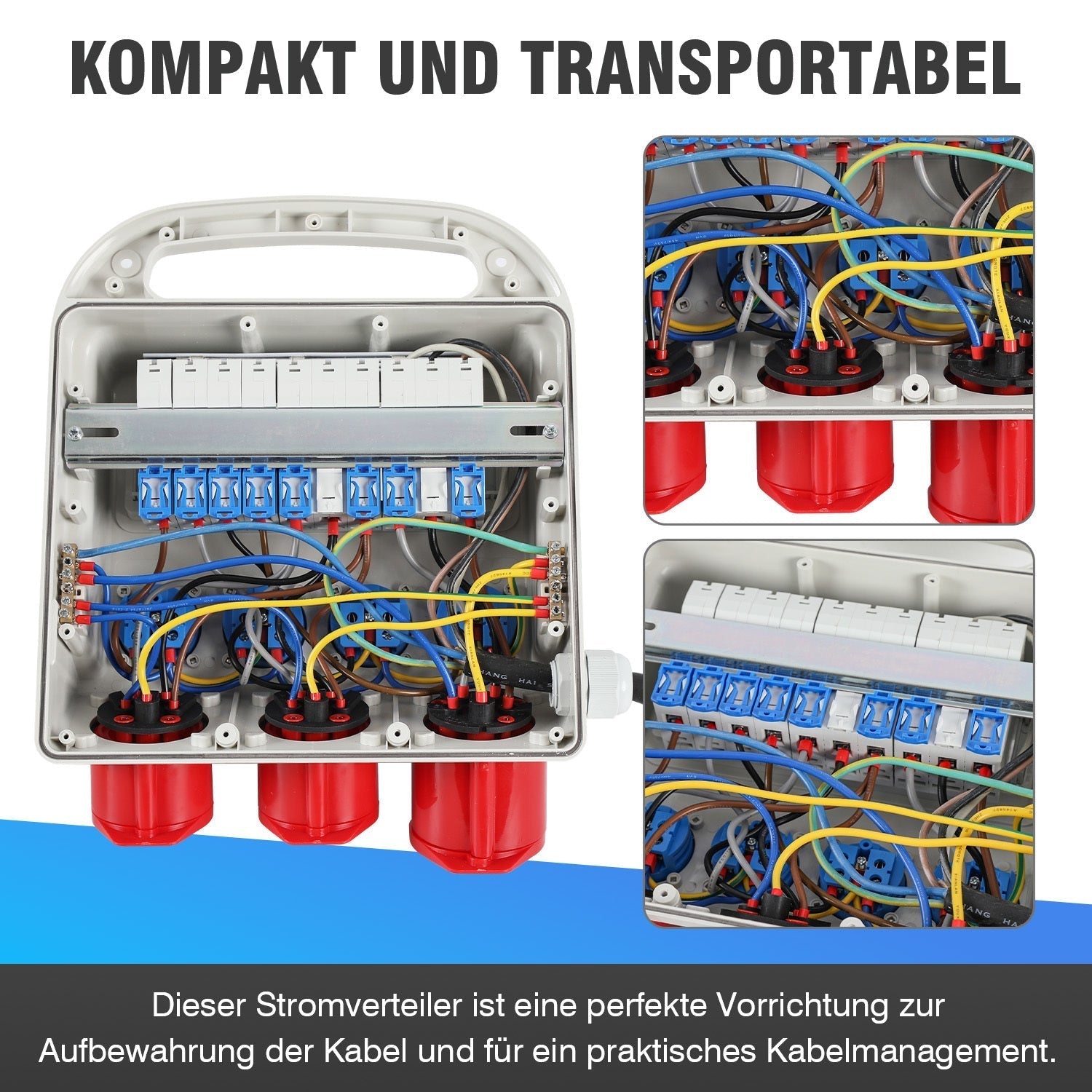

Material:  The housing and mounting plate are made of durable special plastic and are of reliable quality. Wall distributor with residual current circuit breaker and fuses. Outputs are protected by the integrated residual current protection switch. Safety and secure use. Additionally, the schuko socket outlets are each individually protected with a 16A circuit breaker, and the CEE 400V-16A sockets are collectively protected.

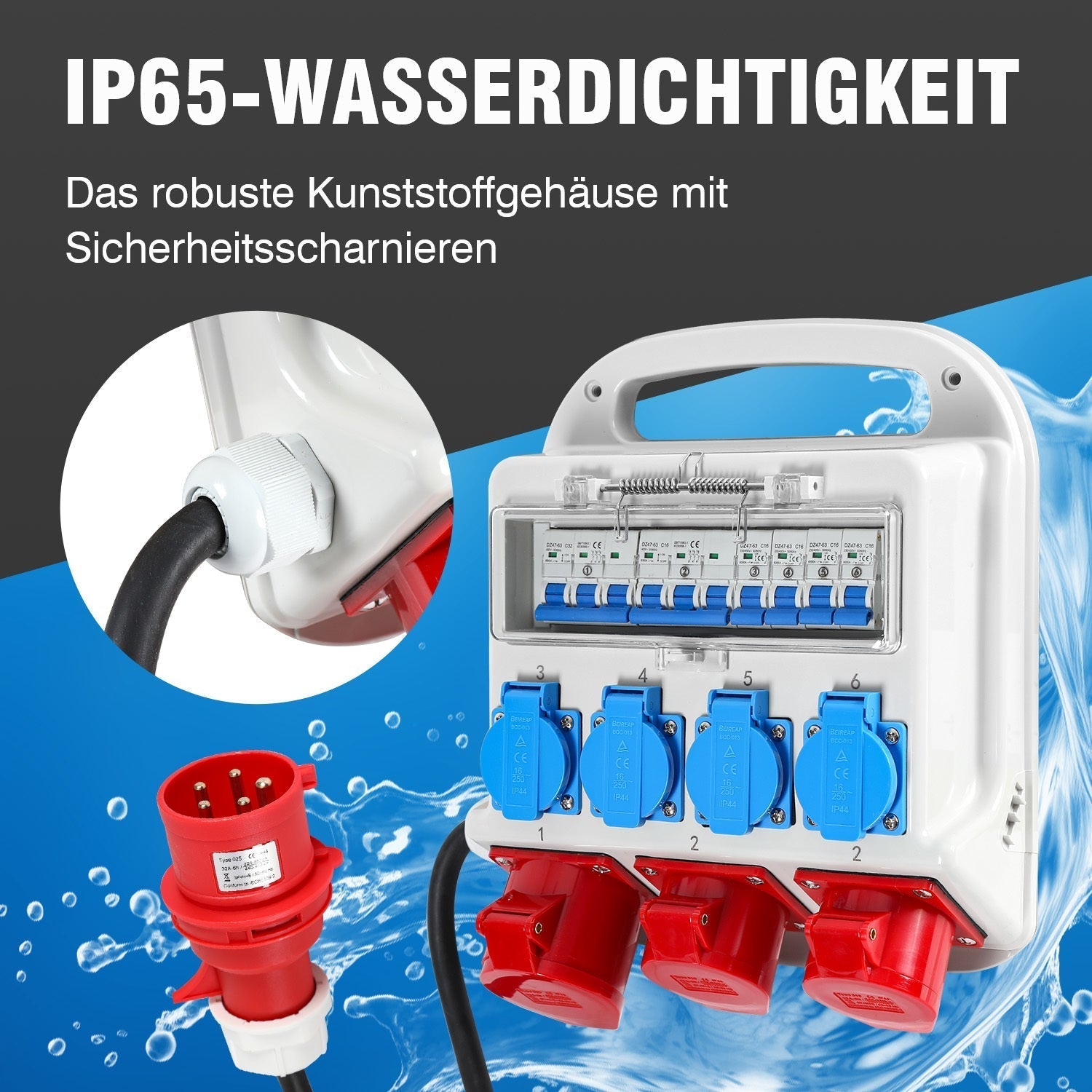

Waterproof: IP44 waterproof rating. The robust plastic housing with safety hinges prevents the ingress of water, dust, and dirt, making the wall distributor ideal for outdoor use.

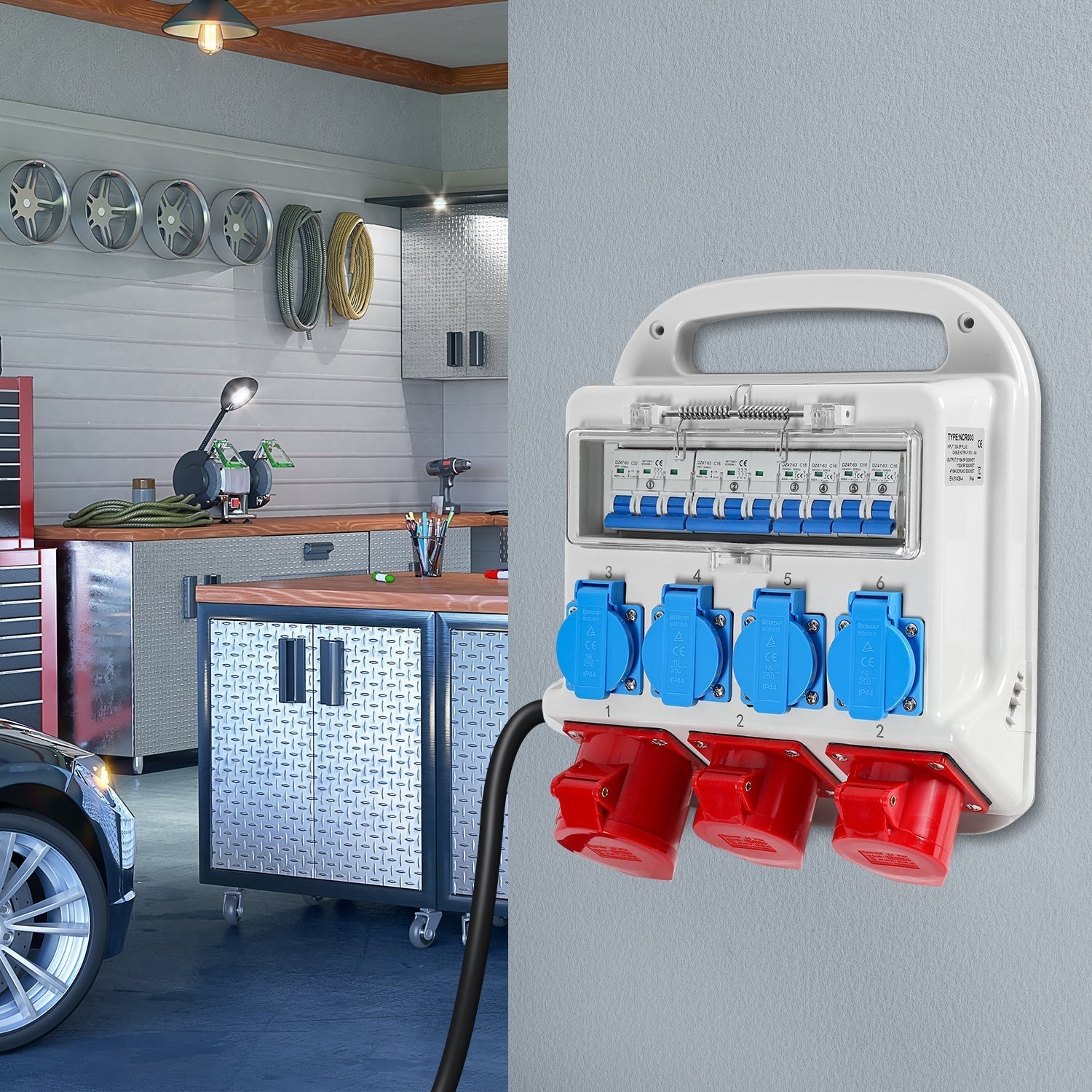

Application: This compact mobile power distributor is suitable for construction sites, homes, yards, industry, crafts, gardens, etc. The power distributor is equipped with a sturdy housing and handle. Easy to carry and move.

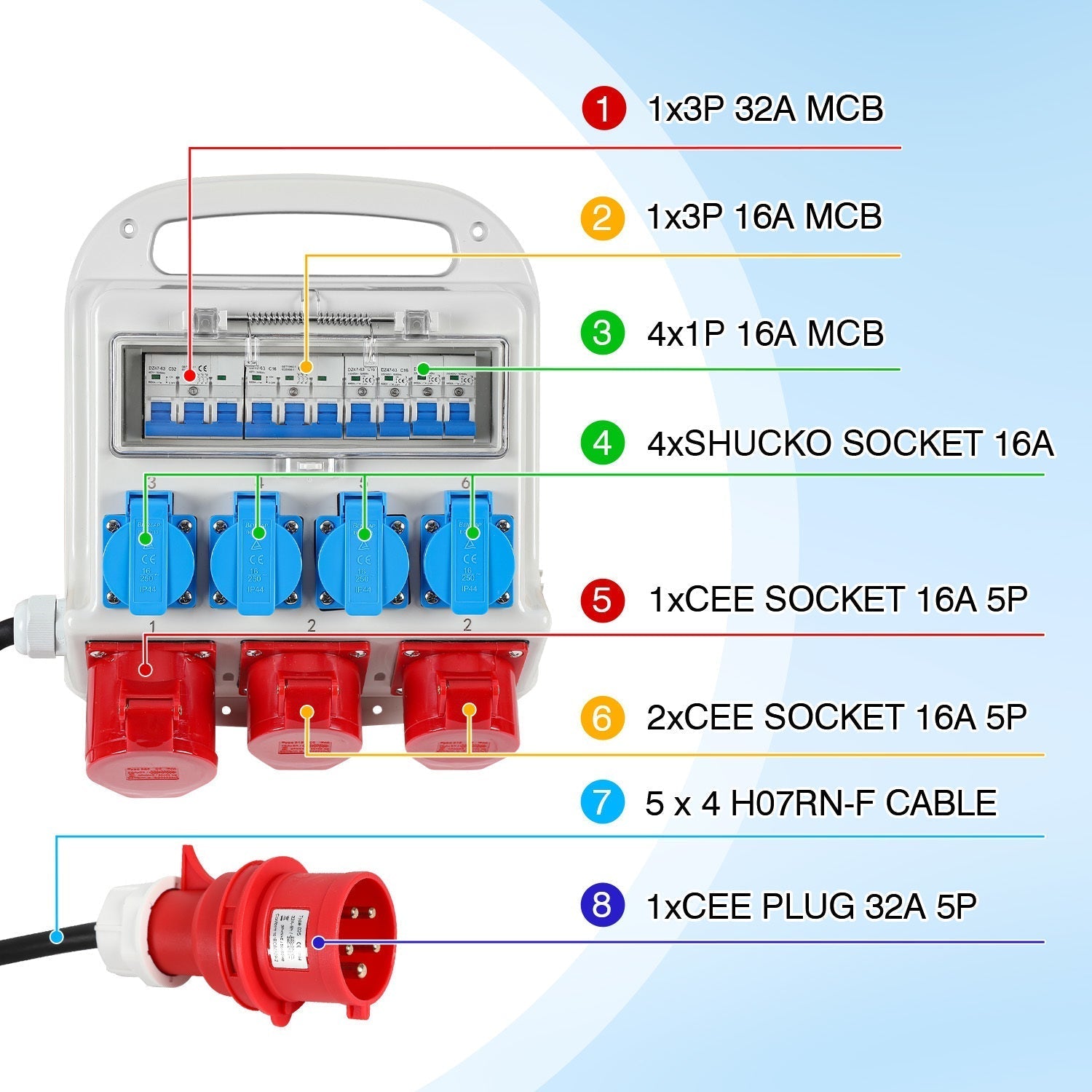

Product advantages:

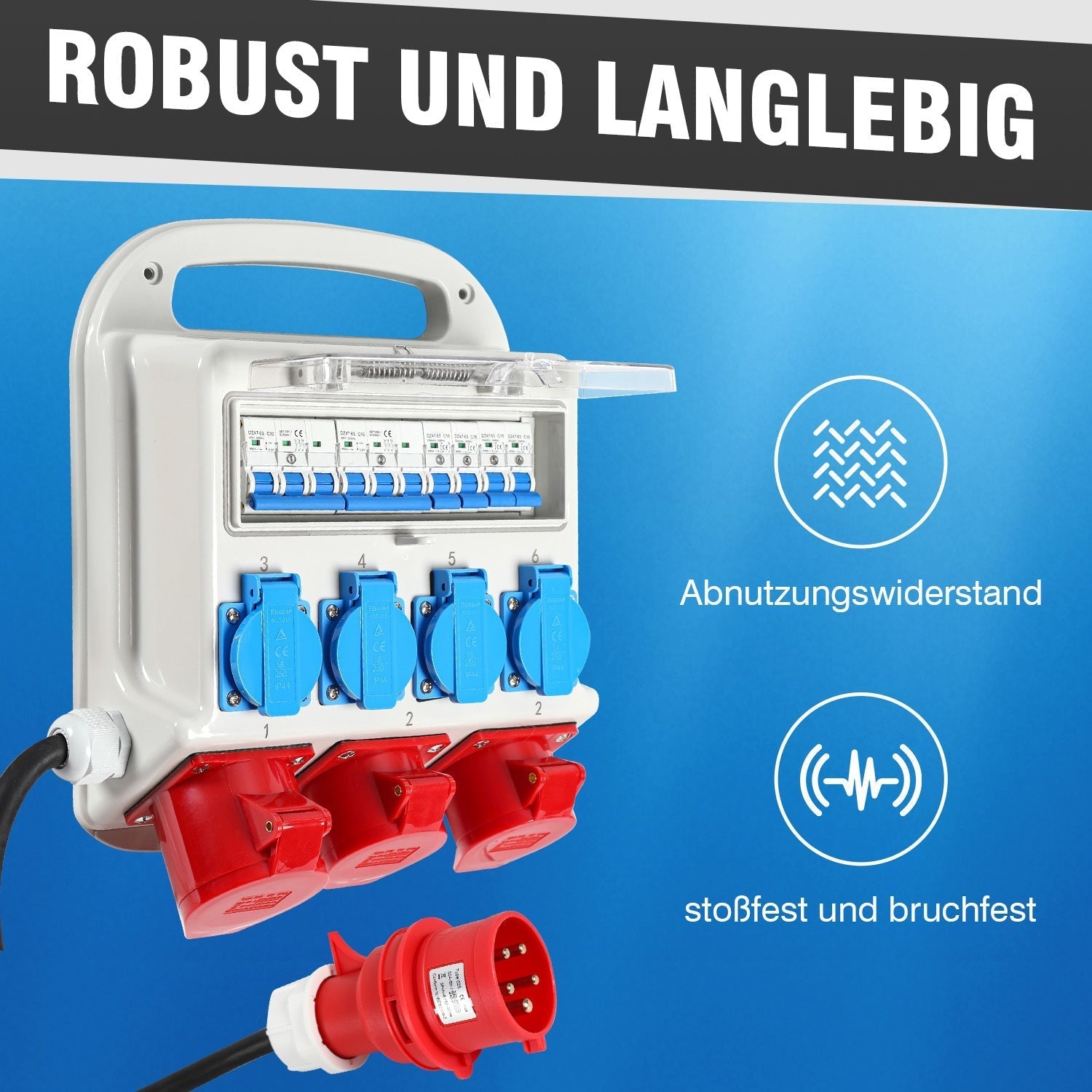

- Housing and handle made of robust special plastic
- incl. 32A and 16A circuit breakers
- 1 x circuit breaker C32A 3-pole
- 1 x circuit breaker C16A 3-pole
- 4 x circuit breaker C16A 1-pole
- 1.2m supply line H07RN-F 5G 4 (32A 5-pole)
- heavy rubber hose cable for power supply
- Protection class of the sockets IP 44, splash-proof
- incl. 2 x CEE-16/400V socket, 1 x CEE-32/400V as well as 4 x 230V schuko socket outlets

Technical data:
Circuit breaker for CEE 400V/32A: C32A 3-pole
Circuit breaker for both CEE 400V/16A: C16A 3-pole
Circuit breaker per schuko socket outlet 230V: C16A 1-pole
Connection plug: CEE plug 400 V / 32 A 5-pole
Output socket outlets 400V-16A: 2 x CEE 400 V / 16 A 5-pole with safety flap
Output socket outlets 400V-32A: 1 x CEE 400 V / 32 A 5-pole with safety flap
Output socket outlets 230V: 4 x 230 V (schuko) safety socket outlets with safety flap
Supply line: H07RN-F 5G 4
Weight approx.: 4kg

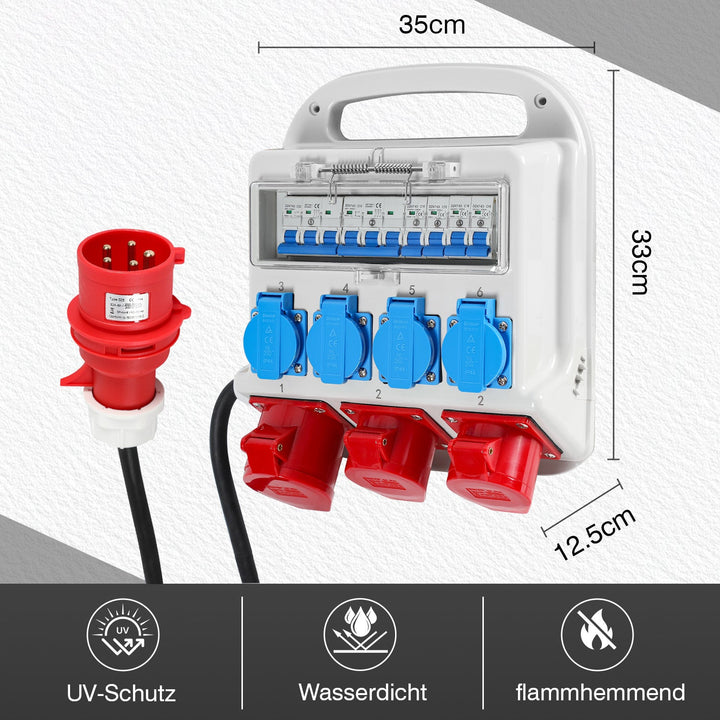

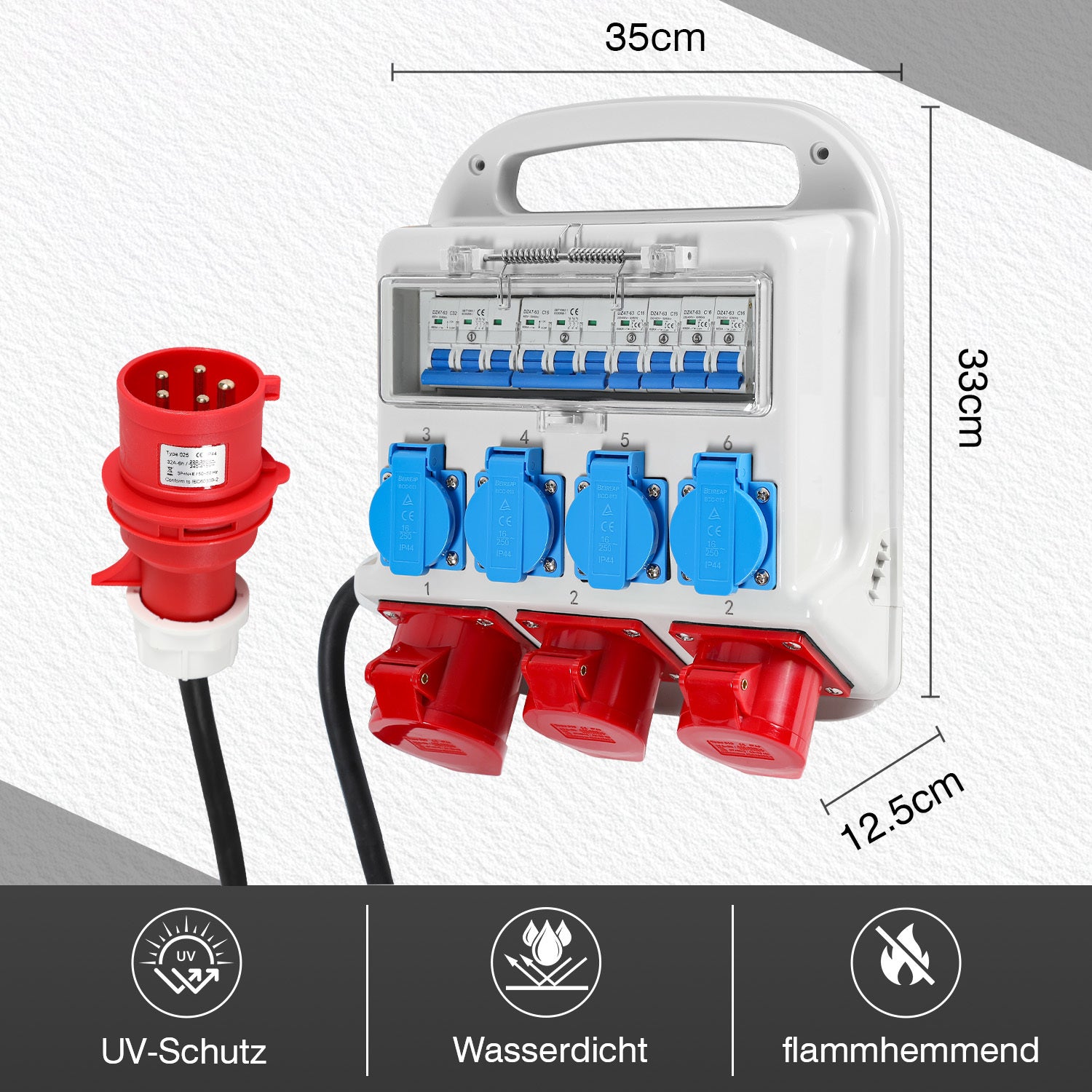

Dimensions approx. (LxWxH): 360x280x110mm

Scope of delivery:
1 piece, wall distributor 400V with fuses, including supply line and plug

Note:
Delivery is ready for connection pre-assembled, the device must be operated at a protected RCD socket outlet.
