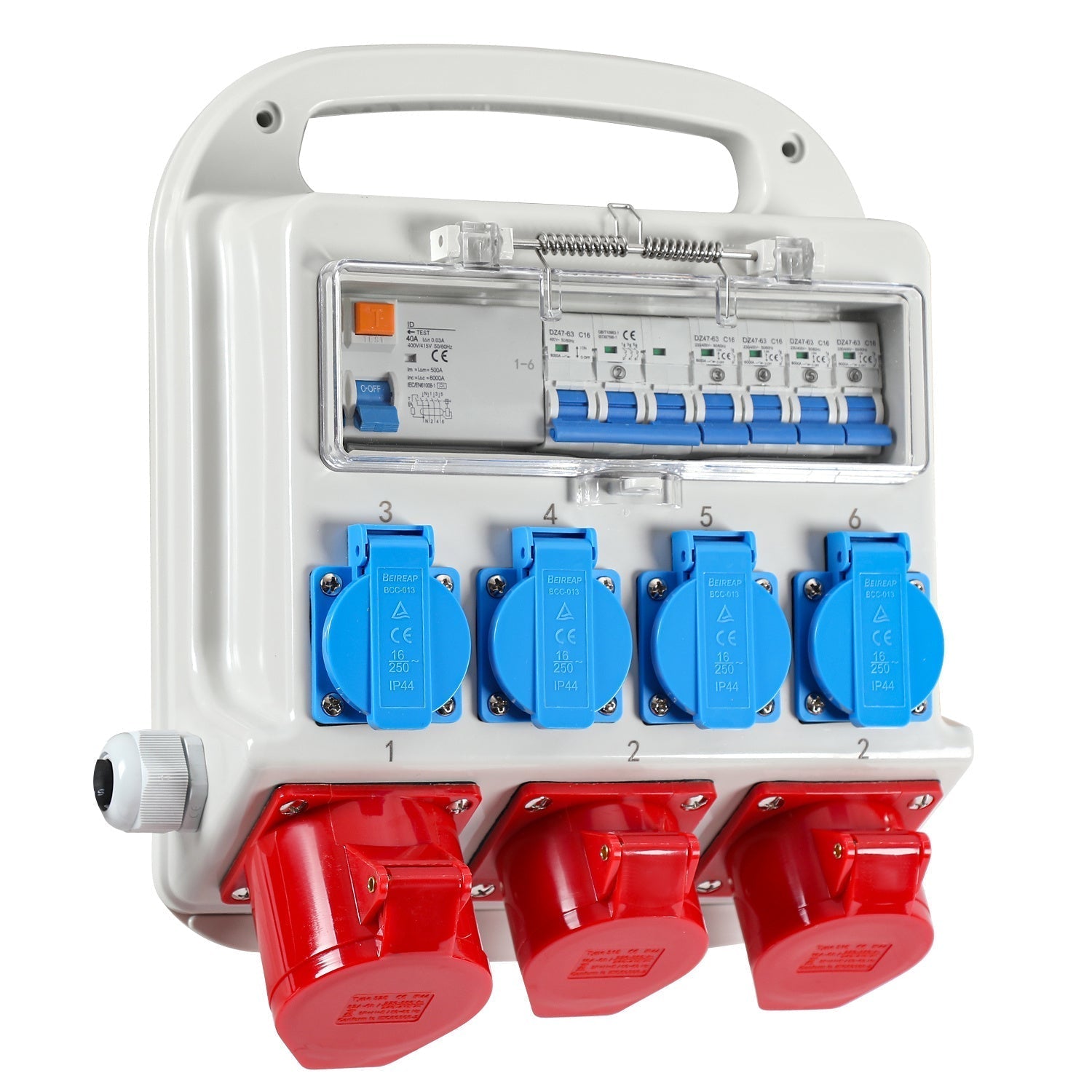

Power distributor RCD 2 x CEE 400V/16A + 4 x 230V Schuko 5 pole | Kalsten

Input and output: CEE - socket 400 V / 32 A 5-pin with 1.2 m cable, 4 x safety socket 230 V /16 A, 2 x CEE 400 V /16 A 5 pin, 1 x CEE 400 V /32 A 5 pin. The outer casing is made of high-strength special plastic.

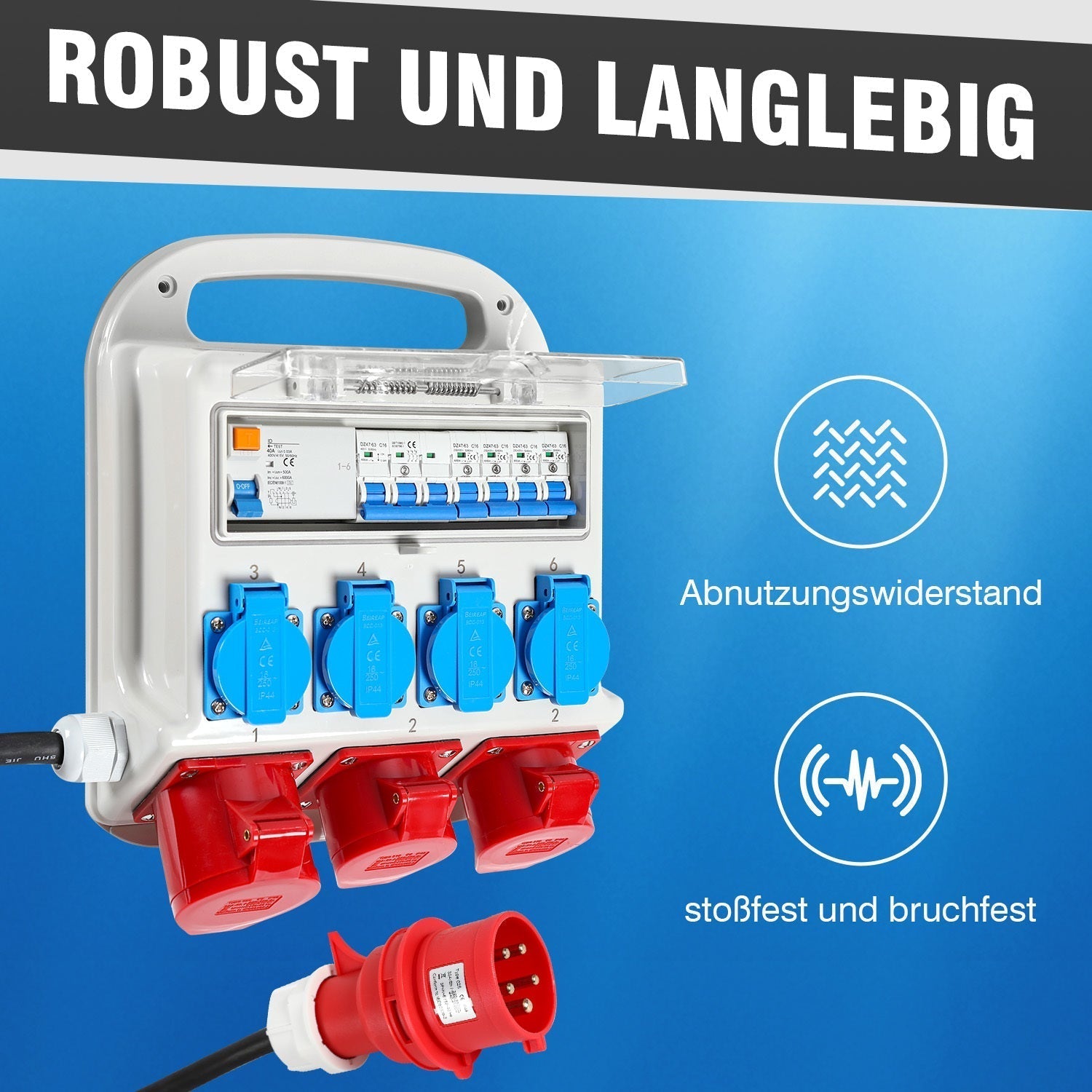

Material: Housing and mounting plate are made of durable special plastic and are of reliable quality. Construction power distributor with RCD and fuses. Outputs are protected by the integrated residual current circuit breaker. Safety and secure usage. Additionally, the Schuko sockets are each individually protected with a 16A circuit breaker and the CEE 400V-16A sockets are protected together.

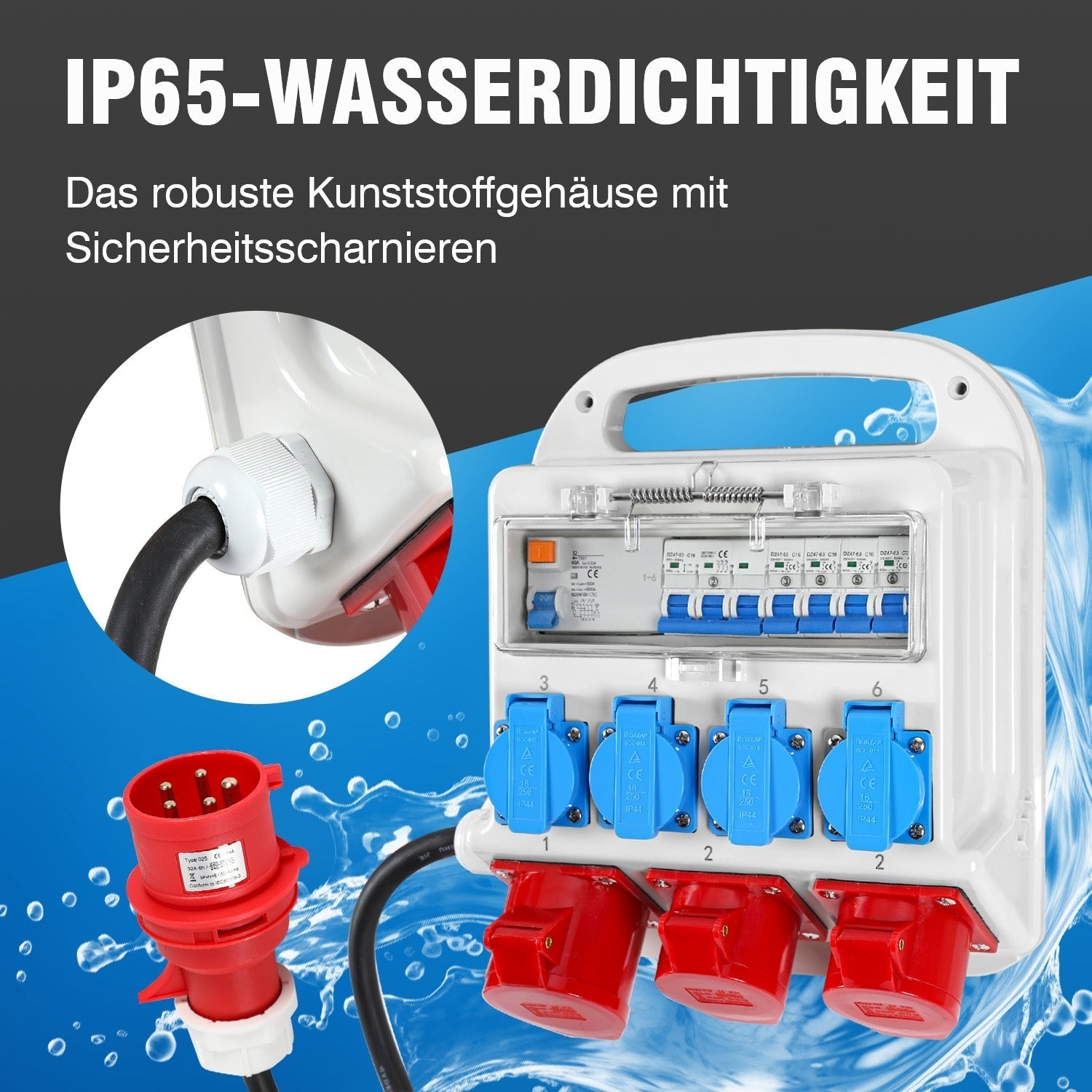

Waterproof: IP44 waterproof rating. The robust plastic housing with safety hinges prevents the ingress of water, dust, and dirt, making the construction power distributor ideal for outdoor use.

Application: This compact mobile power distributor is suitable for construction sites, houses, yards, industry, crafts, gardens, etc. The power distributor is equipped with a sturdy housing and handle. Easy to carry and move.

Product advantages:
- Housing and carrying handle made of robust special plastic
- Includes residual current device and circuit breakers
- 1 x RCD 40A 30mA 4-pole
- 1 x circuit breaker C16A 3-pole
- 4 x circuit breaker C16A 1-pole
- 1.2m supply cable H07RN-F 5G2.5 (32A 5-pole)
- heavy rubber hose cable power supply
- Protection class of sockets IP 44, splash-proof
- Includes 2 x CEE-16/400V socket, 1 x CEE-32/400V and 4 x 230V Schuko sockets

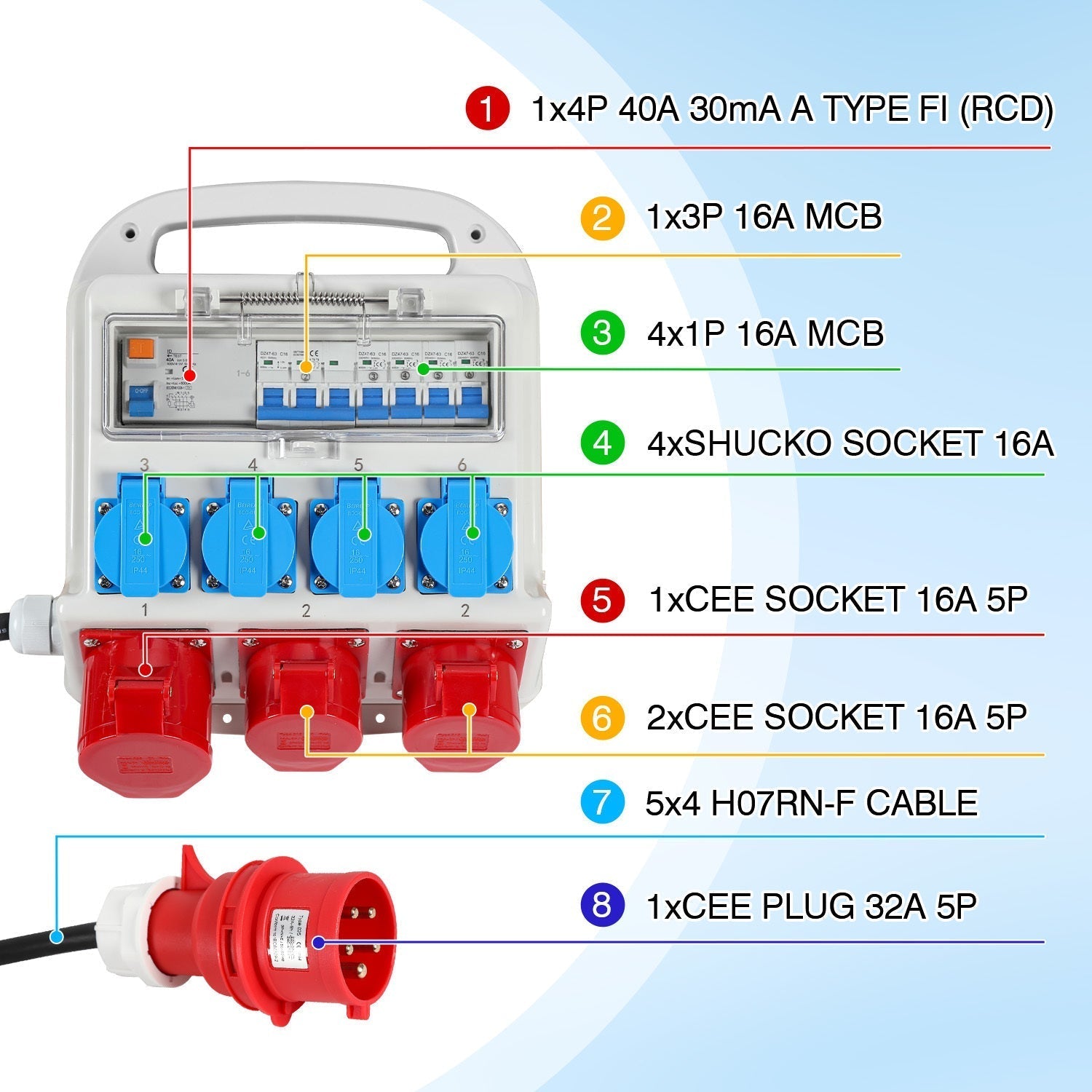

Technical data:
Residual current device: 40A 30mA 4-pole
Circuit breaker for both CEE 400V/16A: C16A 3-pole
Circuit breaker for CEE 400V/32A
Circuit breaker per Schuko socket 230V: C16A 1-pole
Connection plug: CEE plug 400 V / 32 A 5-pole
Output sockets 400V-16A: 2 x CEE 400 V /16 A 5-pole with safety flap cover
Output sockets 400V-32A: 1 x CEE 400 V /32 A 5-pole with safety flap cover
Output sockets 230V: 4 x 230 V (Schuko) safety socket with safety flap cover
Supply line: H07RN-F 5G 2.5
Weight approx: 4.1kg

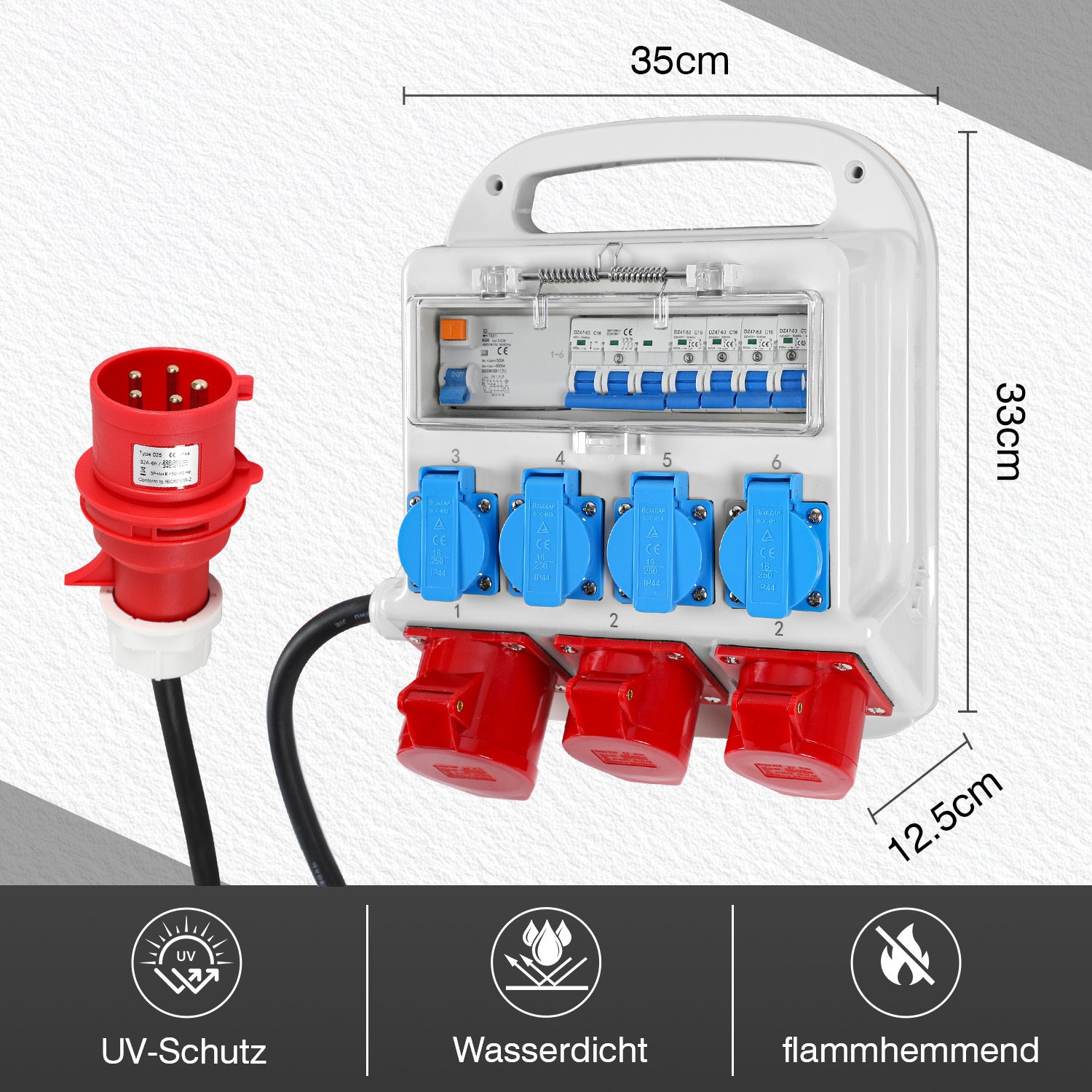

Dimensions approx. (LxWxH): 360x280x110mm

Scope of delivery:
1 piece, power distributor 400V with fuses and RCD, including supply line and plug

Note:
The device must be operated at protected CEE 400V-32A 5-pole sockets
